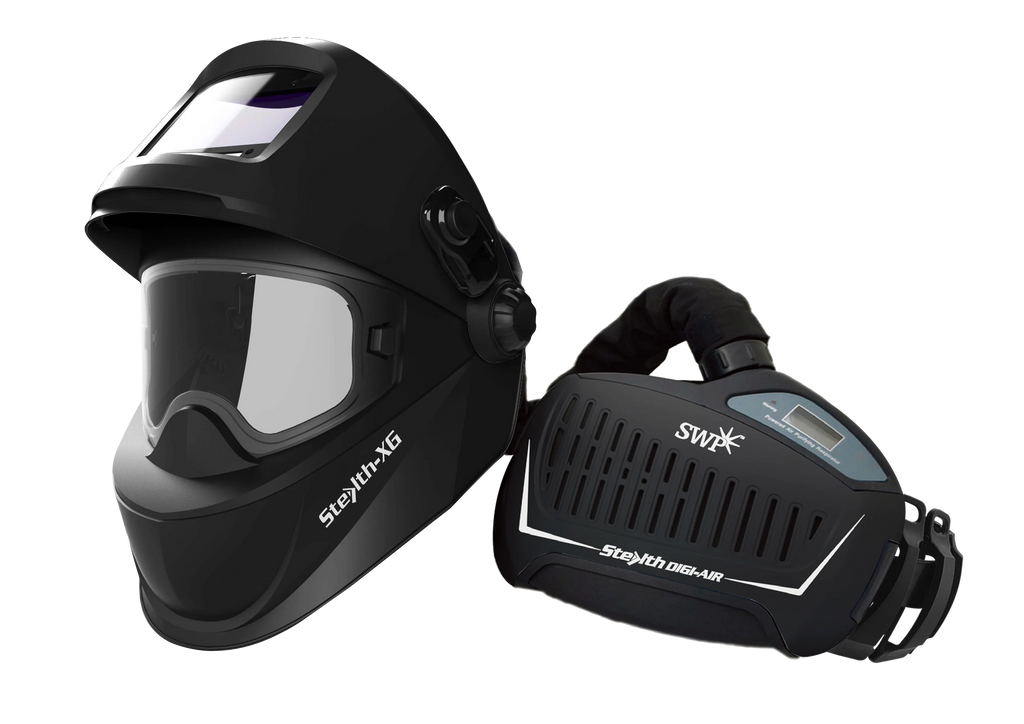

SWP Stealth-XG welding and grinding helmet with visor raised beside the PAPR blower unit

SWP Stealth-XG Welding & Grinding PAPR System | 6044

£470.00
£470.00
Skip to product information
SWP Stealth-XG welding and grinding helmet with visor raised beside the PAPR blower unit
  • SWP Stealth-XG welding and grinding helmet with visor raised beside the PAPR blower unit

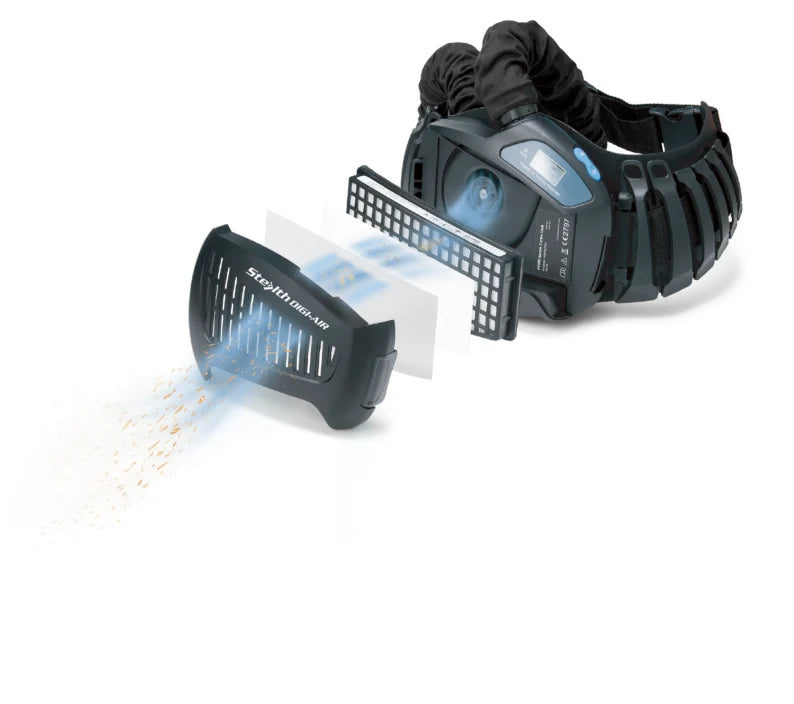

  • SWP Stealth PAPR blower showing the filter cover and separate filtration layers

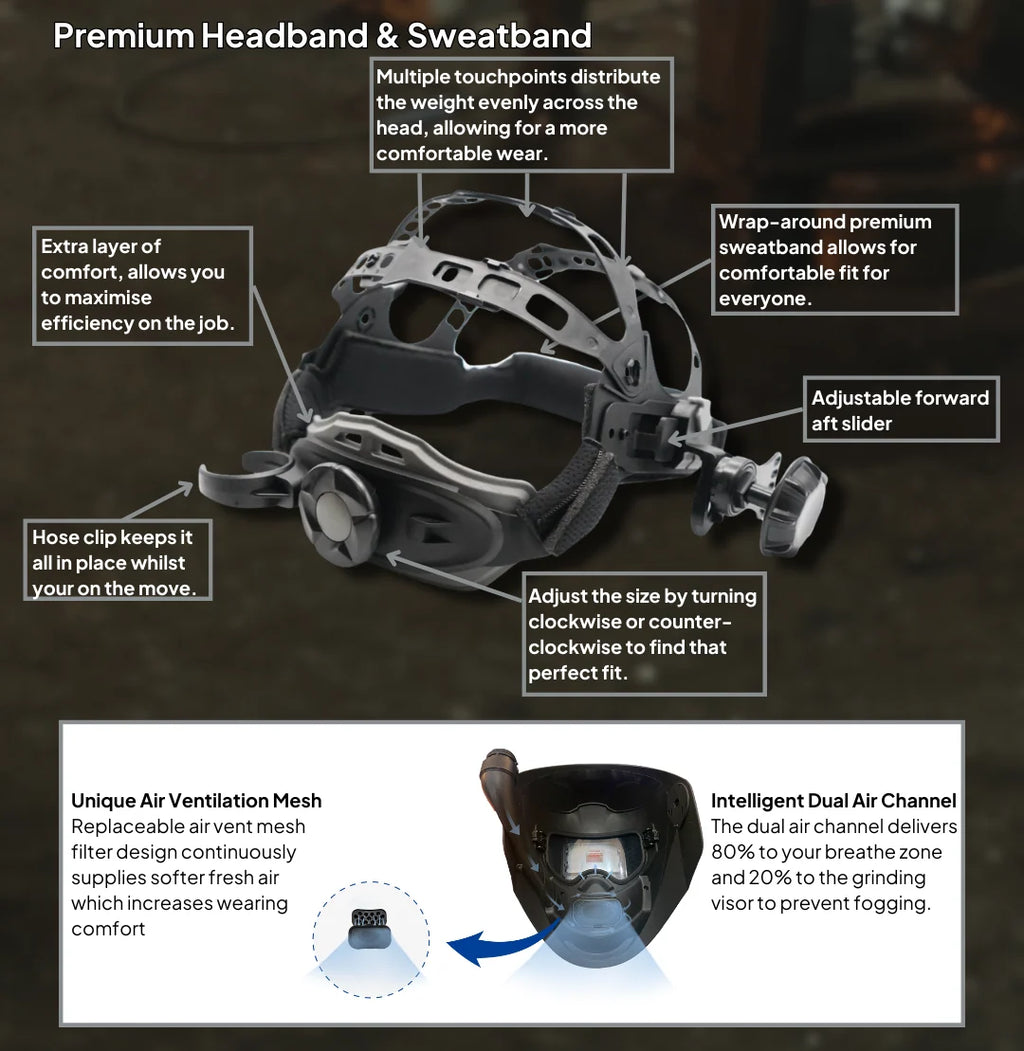

  • Headband diagram: Stealth-XG adjustable headband and sweatband with dual air channel diagram

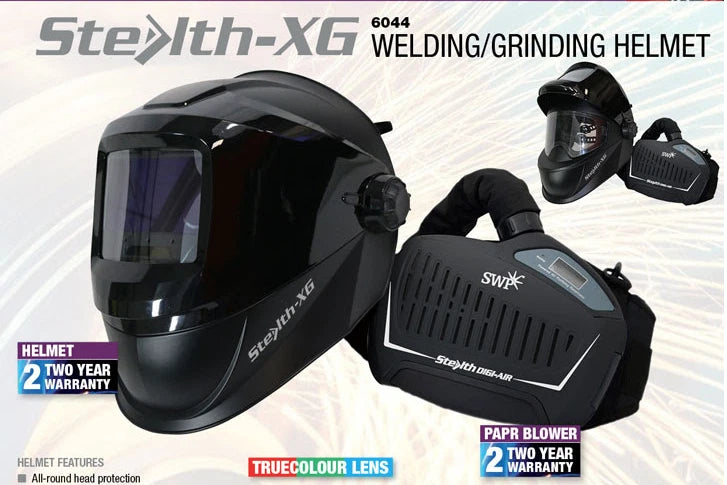

  • Stealth-XG welding and grinding helmet set shown on a light graphic background, including the black helmet with a dark visor, a black PAPR blower, and a small inset of the helmet from the front. Text highlights the Stealth-XG branding, welding/grinding use, two-year warranty, and true colour lens.

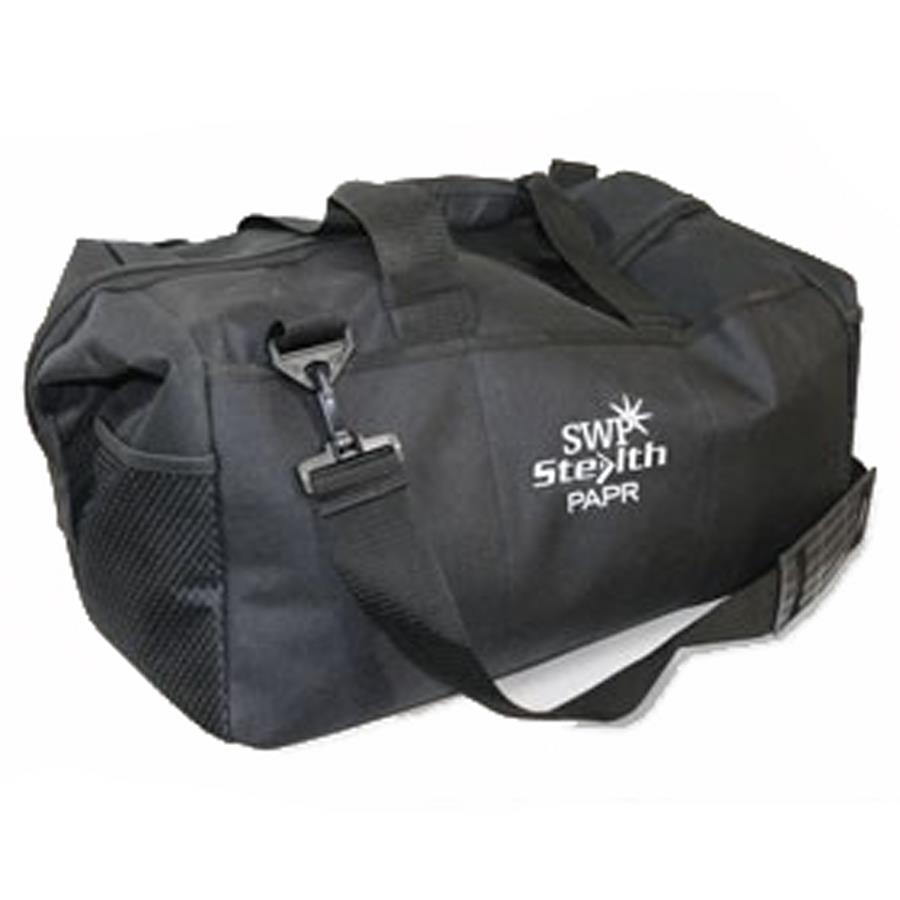

  • Black SWP Stealth PAPR carry bag with handles and adjustable shoulder strap
  • SWP Stealth-XG welding and grinding helmet with visor raised beside the PAPR blower unit
  • SWP Stealth PAPR blower showing the filter cover and separate filtration layers
  • Headband diagram: Stealth-XG adjustable headband and sweatband with dual air channel diagram
  • Stealth-XG welding and grinding helmet set shown on a light graphic background, including the black helmet with a dark visor, a black PAPR blower, and a small inset of the helmet from the front. Text highlights the Stealth-XG branding, welding/grinding use, two-year warranty, and true colour lens.
  • Black SWP Stealth PAPR carry bag with handles and adjustable shoulder strap
SWP Stealth-XG Welding & Grinding PAPR System | 6044

SWP Stealth-XG Welding & Grinding PAPR System | 6044

£470.00
£470.00

All prices exclude VAT

Delivery: UK £10, Ireland £12.50. Usually 3–5 business days. Free delivery on orders over £200.

Product code: 6044 | Airflow: 170 / 200 / 230L/min | Variable shade: 5–9 / 9–13 | Optical classification: 1/1/1/1

The SWP Stealth-XG Welding & Grinding PAPR System combines a true colour welding lens with a flip-up design and large clear grinding view. Adjustable airflow, a premium headband and a comfort waistband help support longer welding and grinding sessions.

Helmet features

  • True colour viewing technology.
  • Flip-up design with large clear view.
  • Optical classification: 1/1/1/1.
  • Three light sensors.
  • Variable shade: 5–9 / 9–13.
  • Sensitivity and delay controls.
  • Minimum TIG current: 3A.
  • Adjustable premium headband and wrap-around sweatband.
  • Dual air channel directs 80% of airflow to the breathing zone and 20% to the grinding visor to help prevent fogging.

PAPR features

  • Three airflow levels: 170, 200 and 230L/min.
  • LCD displays airflow level, battery life and filter loading status.
  • Automatic shutdown after 30 minutes of non-use.
  • Vibration and audible warning alarms for low battery, filter blockage, restricted airflow and high battery temperature.
  • Heavy-duty battery and comfort waistband.
  • Maximum working noise: 73dB.
  • Supplier-listed filter efficiency: 99.996% at 0.3µm, using filter 3044P3.
  • Supplier-listed filtration level: TH3 PR SL.

Battery and unit specifications

  • Battery: Li-ion, 12V, 4400mAh.
  • Charging time: 3.5–5 hours.
  • Operating temperature: −5°C to 55°C.
  • PAPR unit dimensions: 240 × 165 × 70mm.
  • PAPR unit weight: 1370g; excluding battery: 1020g.

Included spares

  • 2 inner protection lenses.
  • 5 outer protection lenses.
  • 2 filters.
  • 2 packs of 5 pre-filters.

Replacement part references

  • Polycarbonate inner lens: 3021.
  • Grinding visor: 6044-11.
  • Polycarbonate outer lens: 3026.
  • PAPR filter: 3044P3.

Supplier lists a two-year warranty. Select respiratory protection and filters appropriate to the workplace hazards and follow the manufacturer's instructions.

Replacement parts & accessories

Browse our SWP Stealth-XG Replacement Parts & Accessories for replacement visors, inner protection lenses, headgear, breathing tube, face seal and other spares.
