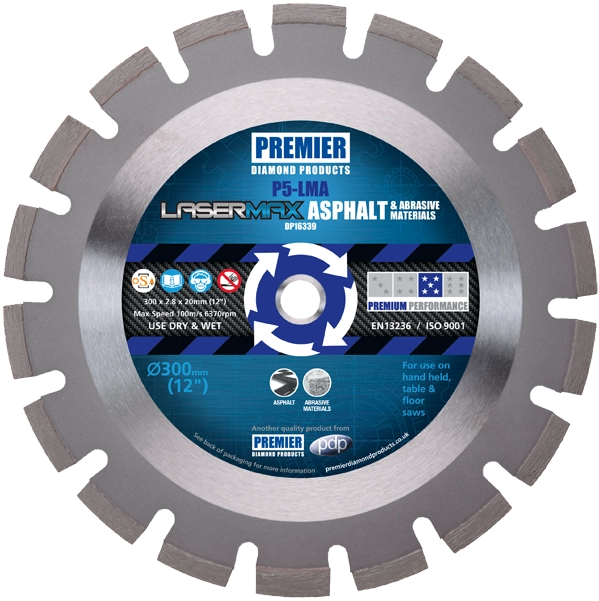

Premier Diamond P5-LMA LaserMax Asphalt & Abrasive Diamond Blade | 115–450mm

The Premier Diamond P5-LMA LaserMax is a premium laser welded diamond blade engineered for cutting asphalt and abrasive materials. Deep draft segments protect the steel core when cutting deeper into asphalt and abrasive materials, delivering outstanding performance across a wide range of site conditions. Despite its premium specification, PDP's field team were impressed by the value it offers at this price point.

Key Features

• LaserMax laser welded construction — high-integrity segment bonding for demanding applications

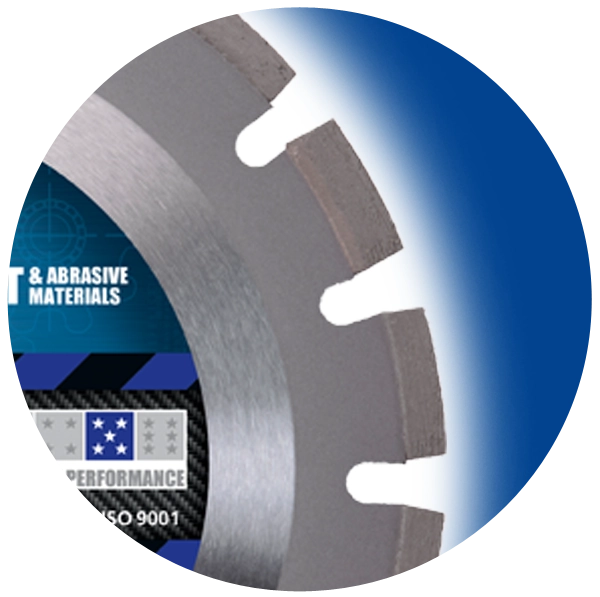

• Deep draft segments — protects the steel core against undercutting in asphalt and abrasive materials
• High quality diamonds with advanced metal bond — fast, consistent cutting performance
• Premium performance level — superior segment life and cutting speed vs entry-level blades
• Dry & wet use — versatile for all site conditions
• Machine suitability: Angle grinders, wall chasers, hand held saws, table saws and floor saws

Suitable Materials

• Asphalt
• Concrete — Green (up to 24 hours old)
• Concrete — Roof Tiles
• Concrete Blocks — Lightweight 3 to 7 Newton
• Concrete Blocks — Medium Density 7 to 12 Newton
• Cement Screed
• Gritstone
• Sandstone — Abrasive

User Tips

• Make certain the blade is suitable for the material before cutting
• Guide the blade straight into the material
• Do not use unnecessary pressure — the weight of the machine is sufficient
• Carry out a slight forwards and backwards pendulum movement when cutting
• If cutting speed reduces, re-sharpen (dress) diamond segments by making several cuts into a highly abrasive material such as a 3-Newton concrete or cinder (breeze) block

Size Guide & SKUs

• DP16330 — 115 x 2.2 x 10 x 22.2mm (4.5˝)
• DP16333 — 125 x 2.2 x 10 x 22.2mm (5˝)
• DP16336 — 230 x 2.6 x 10 x 22.2mm (9˝)
• DP16339 — 300 x 2.8 x 10 x 20mm (12˝) — fits 20mm arbor
• DP16342 — 350 x 3.2 x 10 x 25.4mm (14˝) — fits 25.4mm arbor
• DP16345 — 450 x 3.6 x 10 x 25.4mm (18˝) — fits 25.4mm arbor
• DP19050 — 25.4mm to 20mm Reducing Bush — for use with 12˝, 14˝ & 18˝ blades on 20mm arbor machines

Standards & Certifications

• EN13236 — European Standard for safety requirements for super abrasive (diamond) products
• oSa — Organisation for the Safety of Abrasives; strict manufacturing, quality and safety procedures in accordance with EN13236
