Premier Diamond P6-PT Professional Porcelain Tile Cutting Blade | 115–350mm

Brand: Premier Diamond Products | Model: P6-PT | Performance level: Professional | Diameters: 115–350mm

The P6-PT is a professional-specification diamond blade designed to cut through porcelain and other hard tiles, including 20mm exterior paving. From indoor tiling to exterior paving work, choose the diameter and bore that match your machine and cutting task.

Key features

• Designed for porcelain and hard tile cutting.
• Suitable materials include ceramic, granite, limestone, marble, porcelain and slate tiles.
• Sizes 150mm and above perform better when used wet.
• DP16841 is the 230mm blade with a 22.2mm bore suitable for handheld angle grinders.

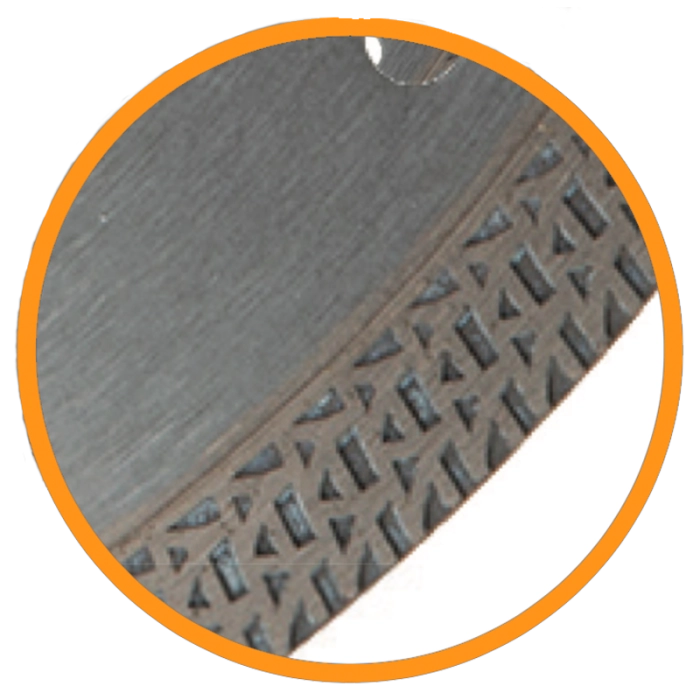

• DP16850 and DP16851 feature a conventional continuous rim and laser-cut expansion slots for table and bridge saws.

Size specifications

Dimensions below are diameter × blade thickness × diamond rim height × bore, in millimetres. Match the bore and diameter to your machine before ordering.

• DP16820: 115 × 1.4 × 10 × 22.2mm (4.5 inch)
• DP16825: 125 × 1.4 × 10 × 22.2mm (5 inch)
• DP16827: 150 × 1.6 × 10 × 22.2mm (6 inch)
• DP16830: 180 × 1.6 × 10 × 25.4mm (7 inch)
• DP16835: 200 × 1.7 × 10 × 25.4mm (8 inch)
• DP16840: 230 × 1.8 × 10 × 25.4mm (9 inch)
• DP16841: 230 × 1.8 × 10 × 22.2mm (9 inch), handheld angle grinder version
• DP16845: 250 × 1.8 × 10 × 25.4mm (10 inch)
• DP16850: 300 × 2.4 × 8 × 20mm (12 inch), table and bridge saw version
• DP16851: 350 × 2.4 × 8 × 25.4mm (14 inch), table and bridge saw version

Machine suitability

The range includes options for angle grinders, saw benches, tile saws and table saws. Not every size is suitable for every machine. Check the specific blade's diameter, bore, maximum operating speed and machine compatibility before use.

Usage advice

• Make certain the blade is suitable for the material before cutting.
• Guide the blade straight into the material without unnecessary pressure.
• Follow the blade and machine manufacturer's instructions for feed pressure, cutting technique and wet or dry use.
• If cutting speed reduces, dress the diamond rim by making several passes through a suitable highly abrasive dressing material, following the manufacturer's guidance.

Standard

The supplied product specification lists EN13236, the European standard covering safety requirements for superabrasive diamond products.

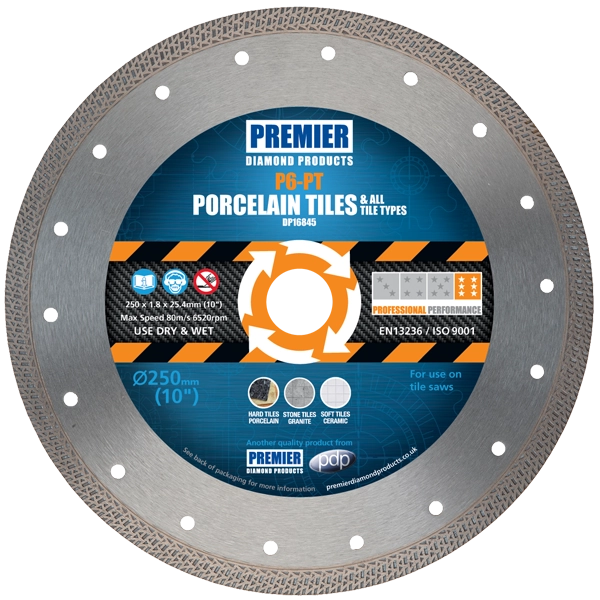

Image note: For Porcelain and hard tiles, differing segment compounds and designs work better for various applications and tools. Each blade offered here is with the optimum segment style for the listed Tool and speed used! The main photograph shows the 250mm DP16845 blade. Blade appearance and rim design vary by size, including the conventional continuous-rim 300mm and 350mm versions.

Shape and finish exposed tile edges

After cutting your tiles to size, create a rounded full bullnose edge on suitable tile and stone up to 20mm thick with the Premier Diamond P5-VBBN Full Bullnose Cutter, for use with a compatible M14 angle grinder.

Then smooth and finish the created 20mm full bullnose profile with the Premier Diamond P5-TPPBN Bullnose Polishing Pads, working from 120 grit to 400 grit. Blade, cutter and pads are sold separately.
