Jefferson 1100W Submersible Sewage Pump | 270L/min | 110V & 230V

Power: 1100W | Maximum flow: 270L/min (16,200L/hr) | Maximum head: 10m | Maximum depth: 5m | Outlet: 2 inch | Versions: 110V and 230V

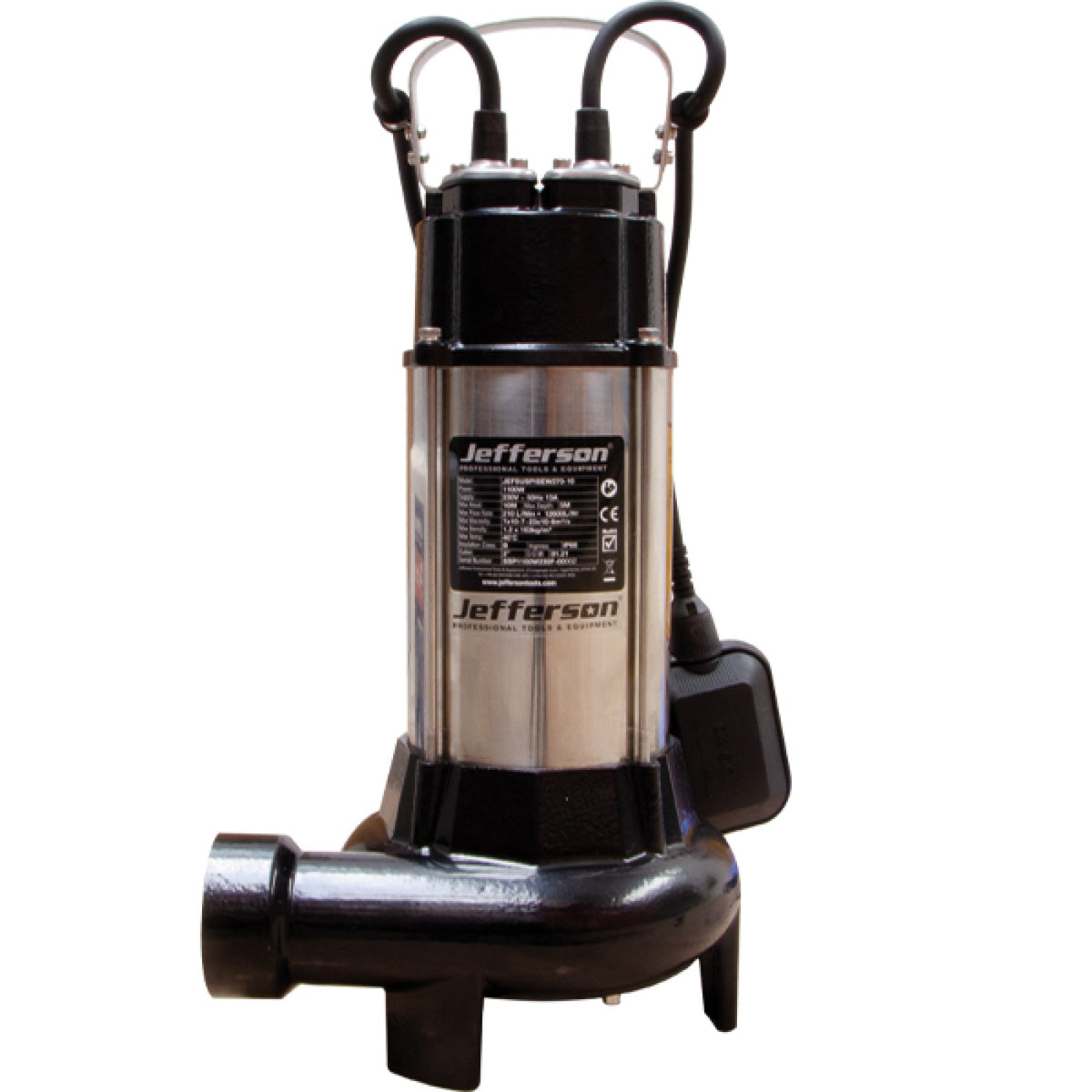

The Jefferson 1100W Submersible Sewage Pump is an industrial pump designed for processing and draining sewage and dirty water. A high-speed vortex impeller, rotary cutter and float switch combine with corrosion-resistant materials and an aluminium motor case for demanding drainage work.

Shared specifications

• High-speed vortex impeller and rotary cutter.
• Float switch.
• Corrosion-resistant construction with aluminium motor case.
• Maximum flow rate: 270L/min / 16,200L/hr.
• Maximum head: 10m.
• Maximum submersion depth: 5m.

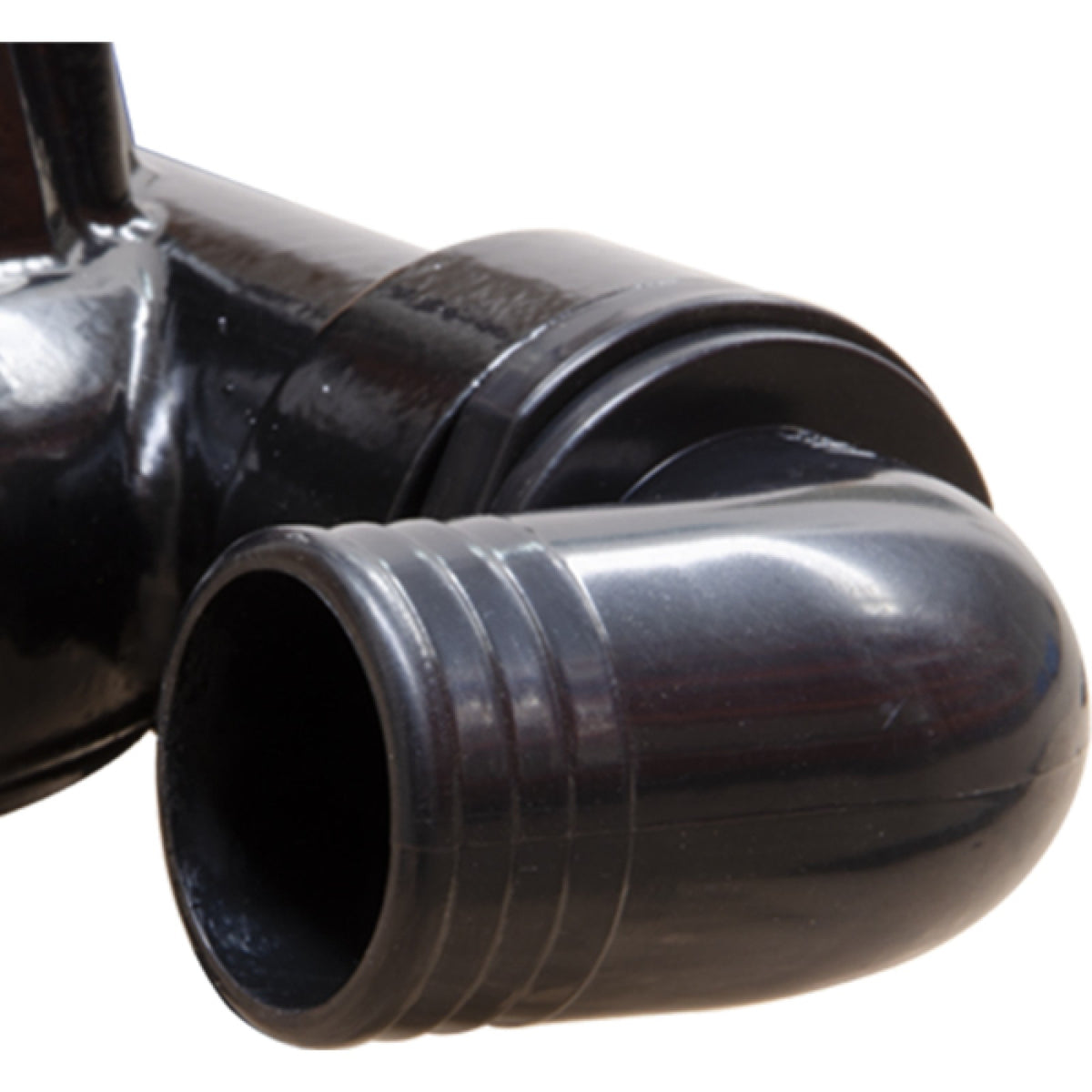

• 2 inch discharge hose connector.
• 10m power cable.
• Ingress protection: IP68.
• Insulation class: B.
• Maximum liquid temperature: 40°C.
• Maximum density: 1.2 × 10³kg/m³.
• Viscosity range: 7 × 10⁻⁷ to 23 × 10⁻⁶m²/s.

110V version

• SKU: JEFSUBPISEW270-10-110
• Power supply: 110V ~ 50Hz.
• UK 16A plug; listed input current: 16A.
• Dimensions: 533 × 300 × 251mm.
• Barcode: 5060813454945.
• Supersedes JEFSUBPISEW270-10-110CP.

230V version

• SKU: JEFSUBPISEW270-10CP
• Power supply: 230V ~ 50Hz.
• UK 13A plug; listed input current: 13A.
• Net weight: 23kg.
• Gross weight: 23kg.
• Dimensions: 542 × 300 × 259mm.
• Barcode: 5060813456116.

Maximum flow and maximum head are separate performance limits, not simultaneous operating figures.
